The Shinco Inverter Casement Aircon (Model KYC-26C/B7-FC) is the first and only casement unit in Singapore to carry the 2-Tick energy label. 12,000 BTU of cooling, integrated compressor, no outdoor condenser — installed in a single window frame, no wall hacking.
Recommended for rooms of 20–35 m² (some spec sheets list 30–35 m²; the promo copy leads with 20–25 m² for typical Singapore HDB rooms).
Whisper-quiet inverter operation. Quiet enough for bedrooms and study rooms.
Wide-angle oscillation with 9 discrete speed steps — from a gentle breeze to full-throttle cooling.
Shinco · KYC-26C/B7-FC · Inverter Casement
Slim tower form factor — 400 × 288 × 750 mm, 28 kg net. Vertical louver delivers air evenly across the room; the UV LED module keeps the airflow hygienically clean.
Inverter Technology · UV LED Purification
"Minimum temperature fluctuations, faster cooling, lower noise levels and better overall durability."
2-Tick energy rating — confirmed on the official Singapore energy label.
"Capturing the finest particles of up to 99.97%." Filters dust, viruses, and bacteria.
Targeted UV light inactivates microorganisms and reduces mould growth on internal surfaces.
Integrated Compressor
"Perfect when you don't have space for an outdoor condenser unit. Lesser mounting procedures or tedious setups also means a much lower installation cost."
Everything lives inside the cabinet — you mount the unit into the window opening, plug it in, and you're cooling. Ideal for HDB windows, service yards, and rental units where landlord approval for an outdoor condenser is hard to get.
Shinco® Inverter Casement Aircon · KYC-26C/B7-FC
| Product | Inverter Casement Aircon |
|---|---|
| Model | KYC-26C/B7-FC |
| Cooling Capacity | 12000 BTU (3500 W) |
| Rated Voltage | 220 V ~, 50 Hz / 60 Hz |
| Rated Power | 920 W |
| Max Input Power | 1500 W |
| Recommended Area | 20–35 m² |
| Timer | 24 Hours |
| Design Pressure | 0.8 (Lo) / 3.8 (Hi) MPa |
| Dehumidification | 1.1 L / h |
| Air Flow Volume | 500–580 m³ / h |
| Noise Level | 40–50 dB(A) |
| Refrigerant | R410A / 415–620 g |
| Net Weight | 22.5–28 kg |
| Net Dimension | 400 × 288 × 750 mm |
| Protection | Class I electric shock |
⚠️ CAUTION — When using the air conditioner, make sure to open the rear window. If the rear-side temperature is high, the unit shows "OP" and will not start. Outside heat sources other than the air-conditioner's own exhaust may deform or damage the product.
Window-frame fit · Free delivery, install & old-unit disposal

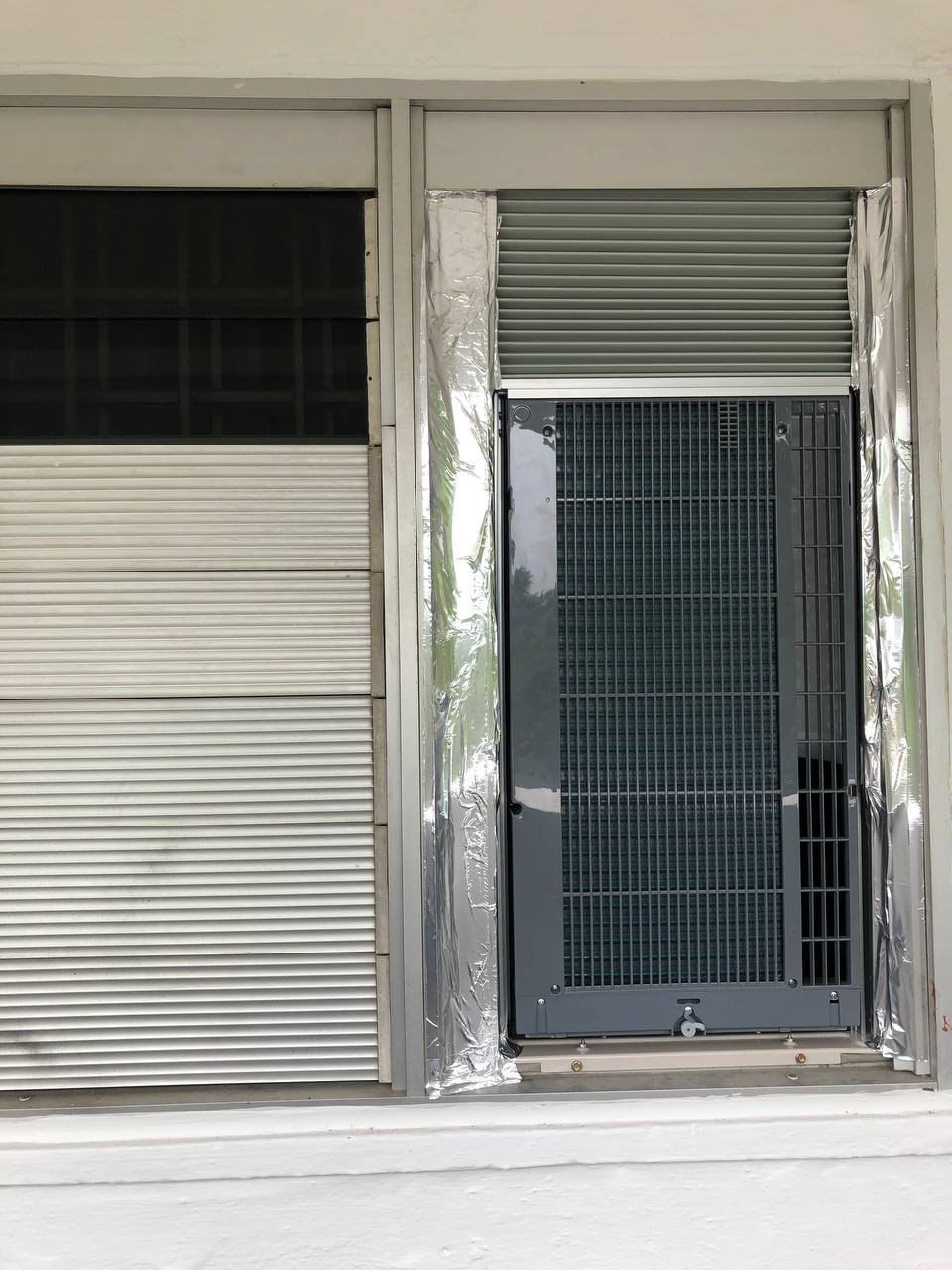

Should be at least 80 cm tall. (The unit body sits 750 mm; allow clearance for top vent.)
Should be at least 47 cm wide for the unit housing.
Condensate is auto-evaporated and exhausted through the rear vent — no drain pipe to plumb.
Window-fit dimensions and clearances are based on the official Shinco installation drawing (see page 1 of the product sheet).
HDB windows · service yards · bedroom frames · corridor-side installations

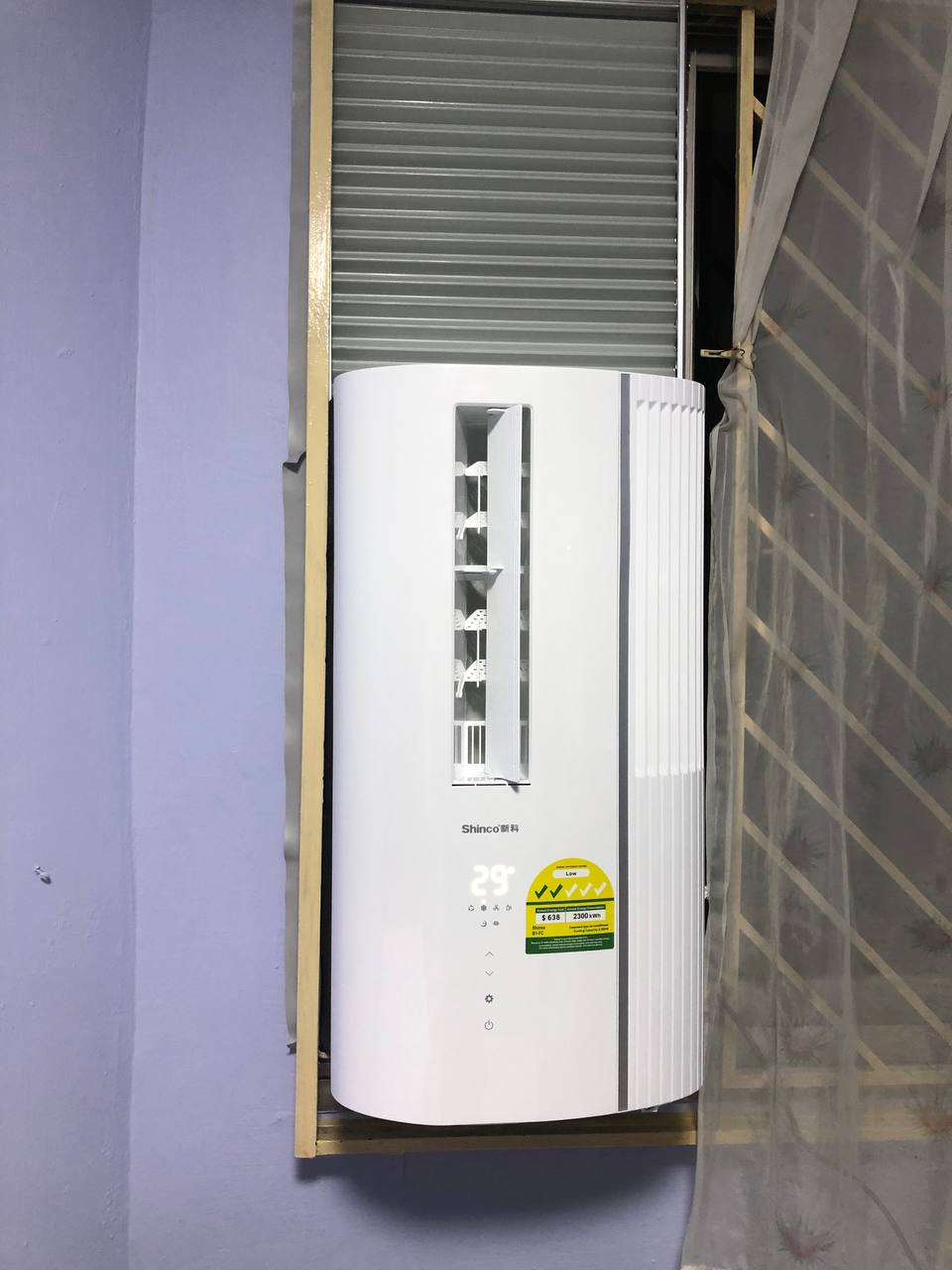

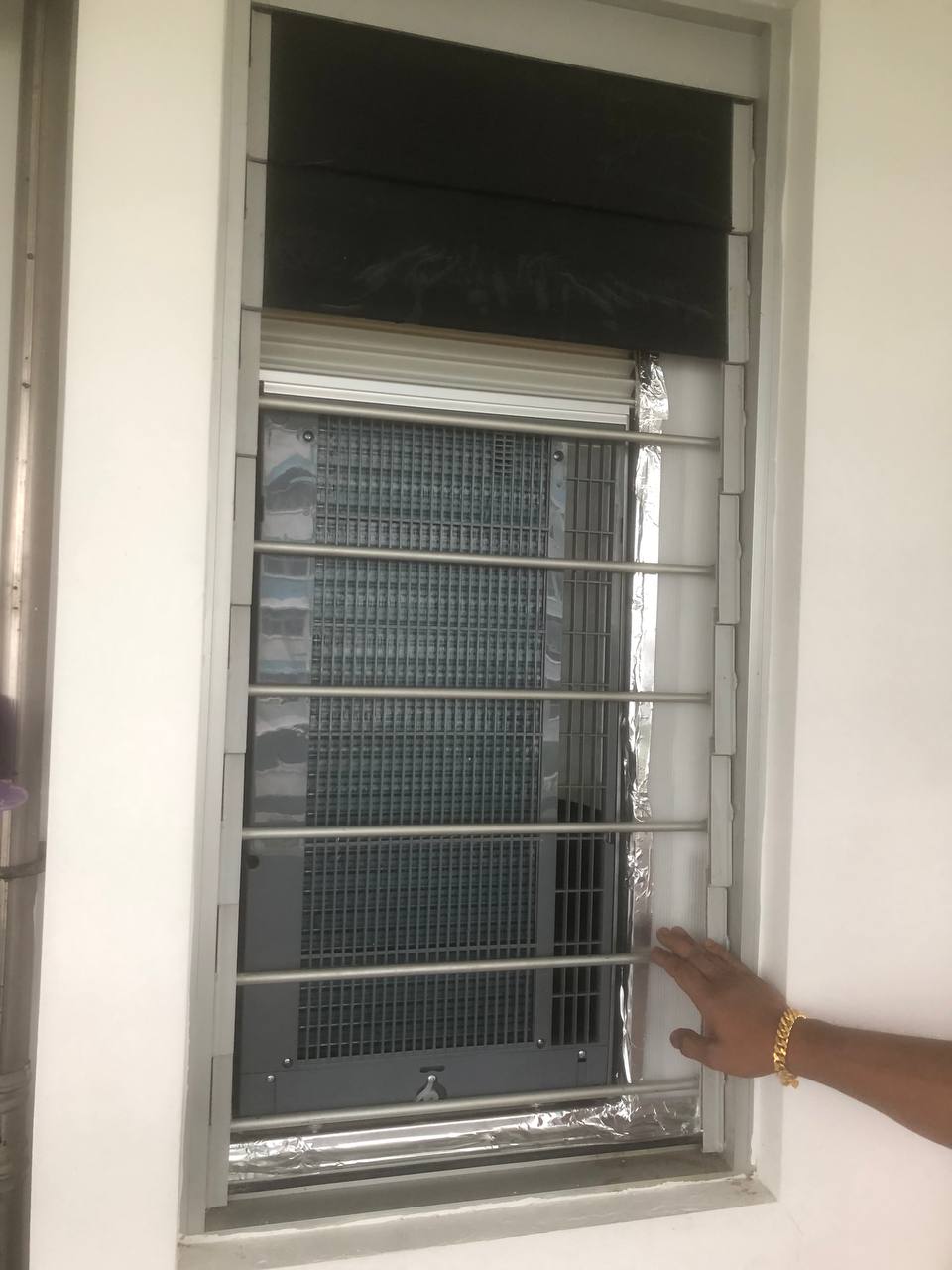

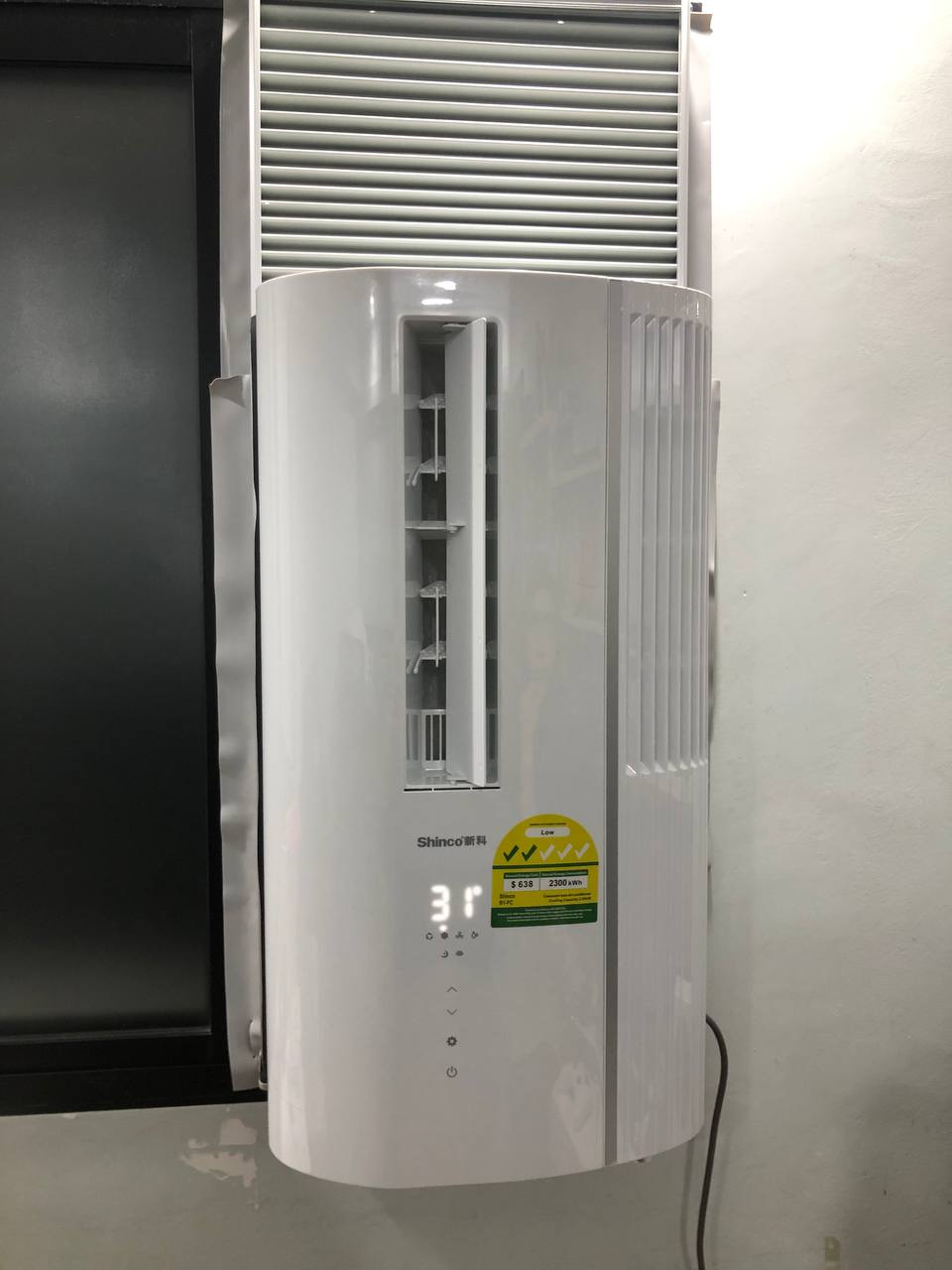

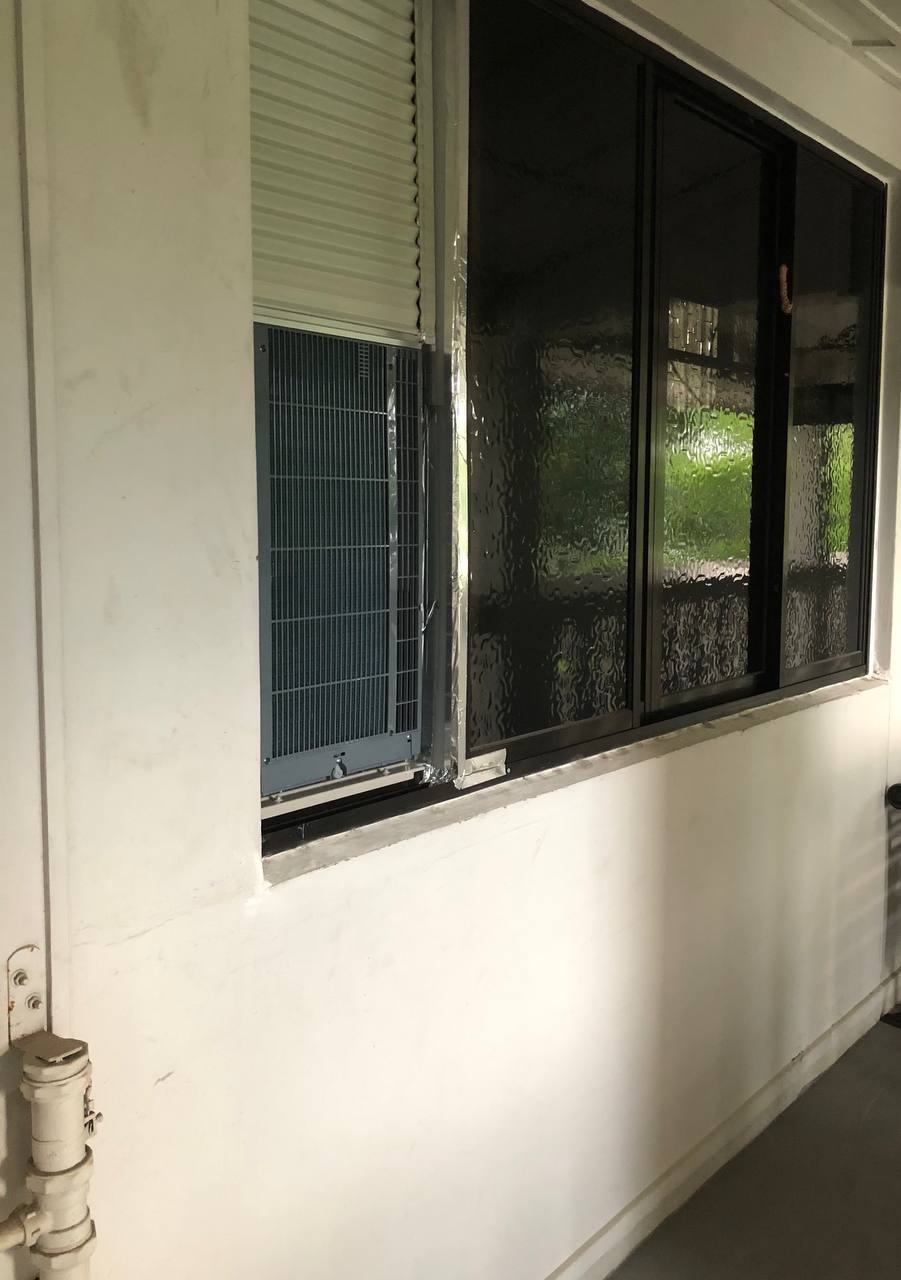

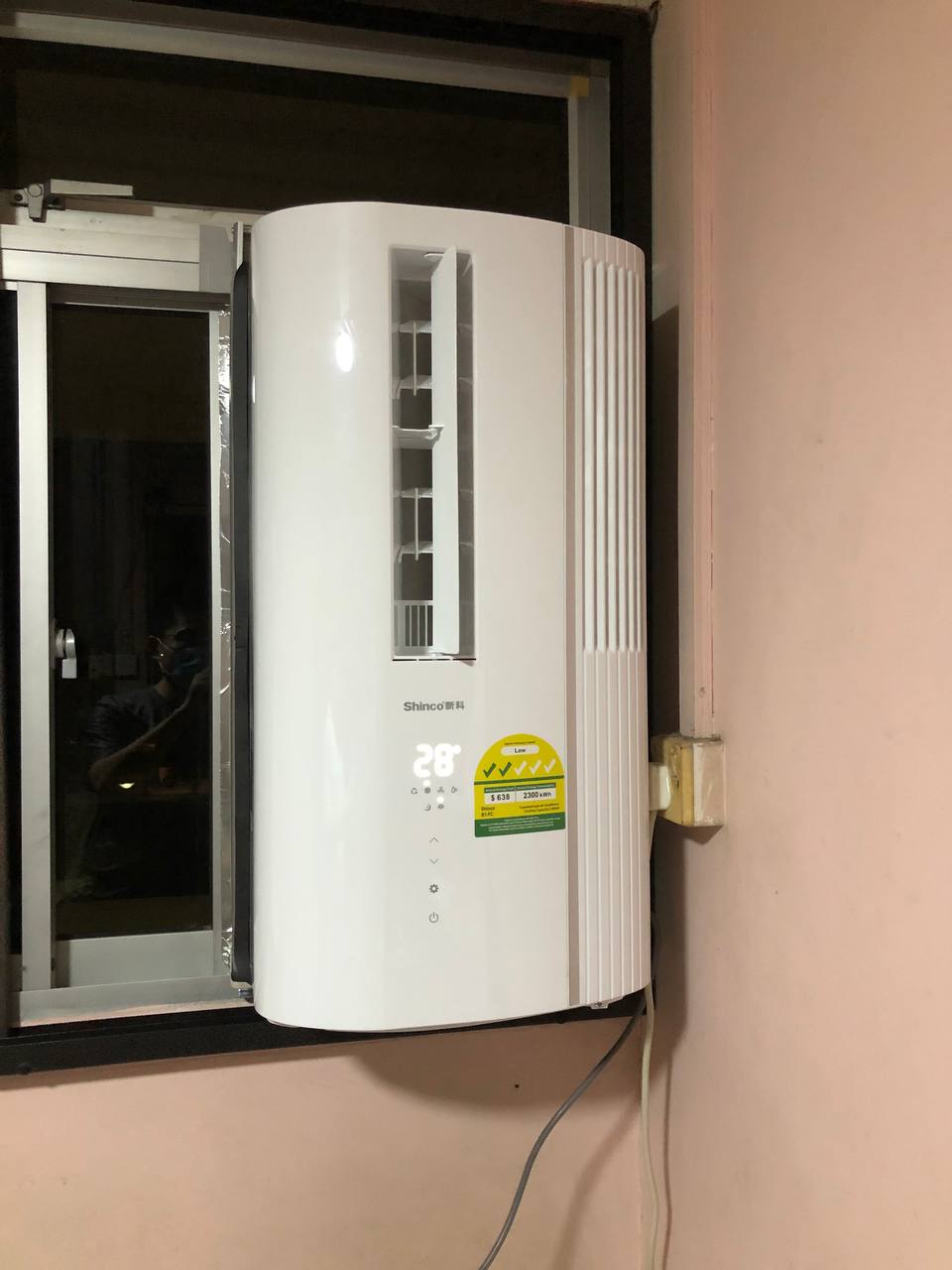

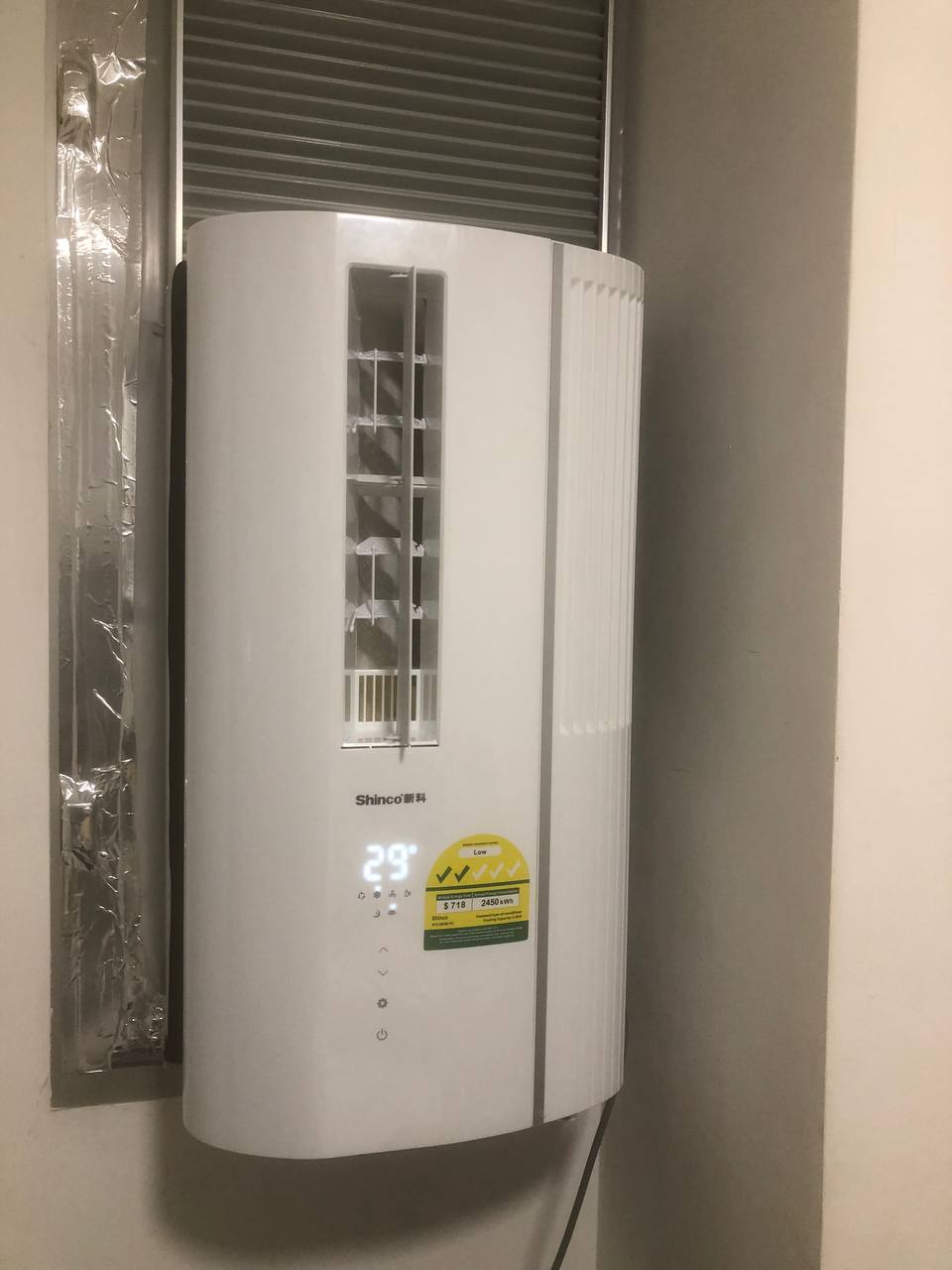

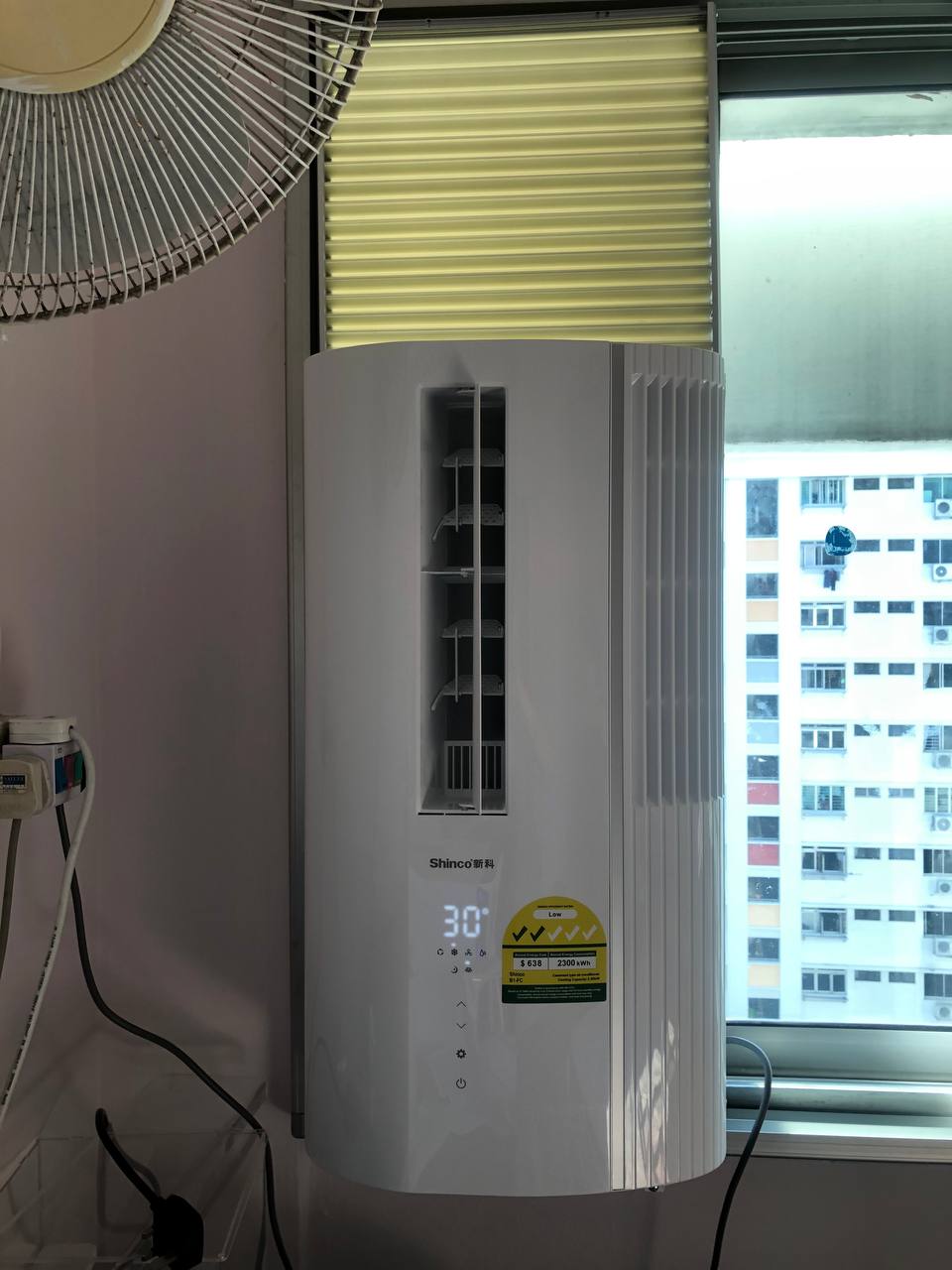

Photos provided by the seller showing real-world casement-frame installations across Singapore, including outdoor seals, HDB common-corridor views, and narrow-frame fits.
1 year parts · 5 years compressor
Full parts warranty for the first year.
Compressor covered for 5 years.
Manufacturer warranty service included.
Installation appointments & repair arrangement.
Plus: free delivery, free installation, and free disposal of your old aircon unit.
WhatsApp the seller directly. Photo of your full window frame helps confirm fit before installation.
